4.6L (281) SEFI OHC V8 "TRITON" ENGINE

• (STD)

• Four Wheel Drive
• Conventional Spare Tire
• Power Steering
• Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door
• Keyless Entry
• Immobilizer
• A/C
• AM/FM Stereo
• Power Outlet
• Front Reading Lamps
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 20.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3400
• Gross Axle Wt Rating - Rear (lbs): 3550
• Curb Weight - Front (lbs): 2732
• Curb Weight - Rear (lbs): 1949
• Gross Vehicle Weight Rating Cap (lbs): 6250
• Gross Combined Wt Rating (lbs): 7,200
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4,000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 4,000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1,000
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3400
• Spring Capacity - Rear (lbs): 3550
• Axle Type - Front: Twin Forged SLA
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3900
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1 x 0.39
• Rear Brake Rotor Diam x Thickness (in): 13.2 x 0.43
• Tires
• Front Tire Order Code: T52
• Rear Tire Order Code: T52
• Spare Tire Order Code: T52
• Front Tire Size: P235/70R16SL
• Rear Tire Size: P235/70R16SL
• Spare Tire Size: P235/70R16SL
• Front Tire Capacity (lbs): 1804
• Rear Tire Capacity (lbs): 1804
• Spare Tire Capacity (lbs): 1804
• Revolutions/Mile @ 45 mph - Front: 719
• Revolutions/Mile @ 45 mph - Rear: 719
• Revolutions/Mile @ 45 mph - Spare: 719
• Wheels
• Front Wheel Size (in): 16.0 x 7.0
• Rear Wheel Size (in): 16.0 x 7.0
• Spare Wheel Size (in): 16.0 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 14.0
• Turning Diameter - Curb to Curb (ft): 45.9
• Turning Diameter - Wall to Wall (ft): 47.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 138.8
• Length, Overall w/o rear bumper (in): 225.8
• Width, Max w/o mirrors (in): 79.5
• Height, Overall (in): 75.5
• Overhang, Front (in): 38.7
• Overhang, Rear w/o bumper (in): 48.3
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 62.1 @ Belt
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 58.6
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 63.8
• Front Hip Room (in): 61.0
• Second Head Room (in): 37.8
• Second Leg Room (in): 32.2
• Second Shoulder Room (in): 63.8
• Second Hip Room (in): 63.2
• Summary

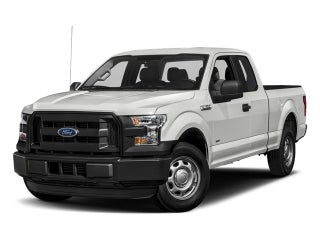

• Vehicle Name: Ford F-150
• Body Style: Supercab 6.5' Styleside
• Body Code: 138.8" WB
