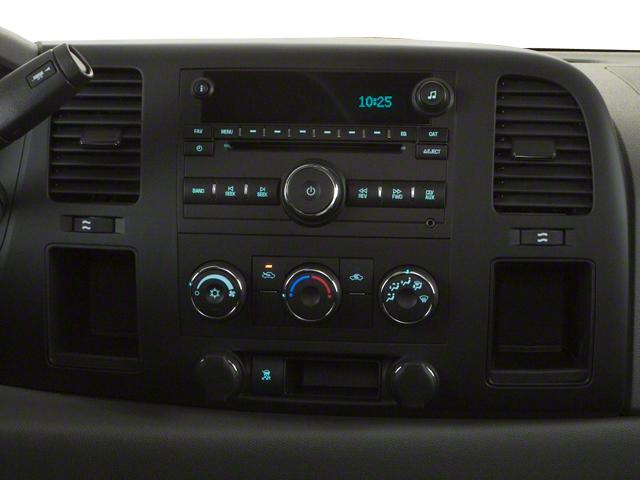

• Air conditioning, single-zone manual front climate control
• Audio system feature, 4-speaker system (Requires Regular Cab models.)

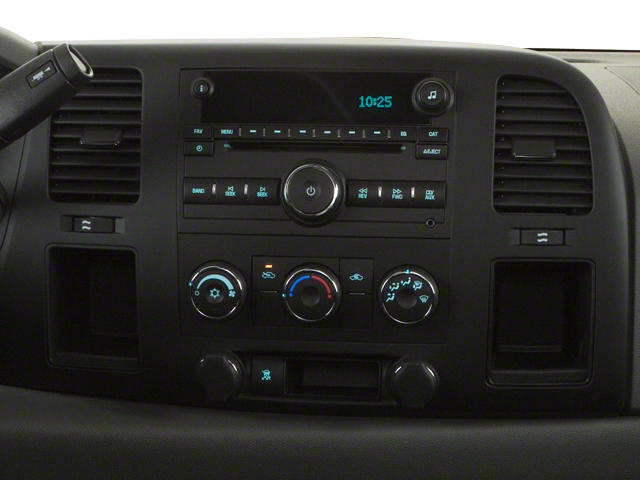

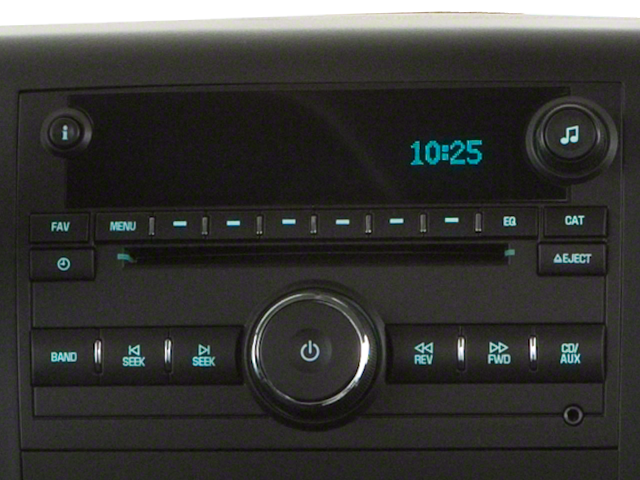

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) SiriusXM Satellite Radio.)
• Coat hooks, rear driver and passenger side

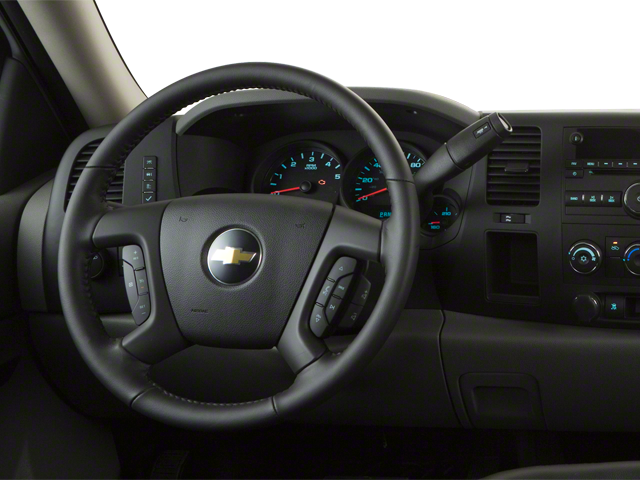

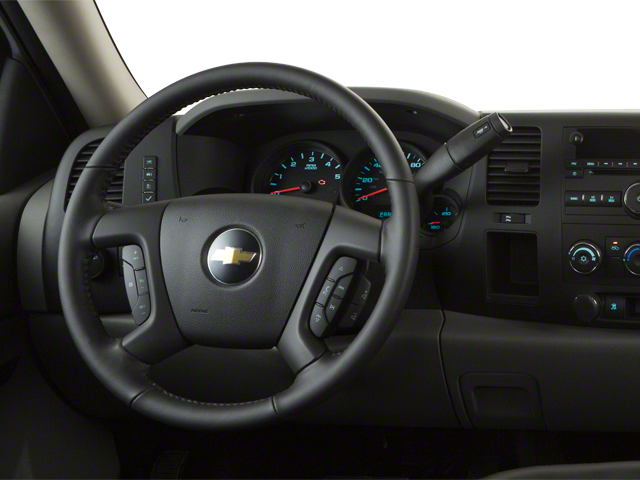

• Cruise control, electronic with set and resume speed, located on steering wheel
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches

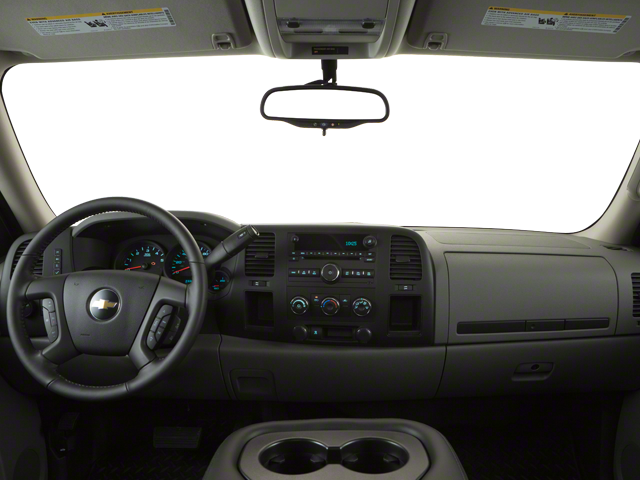

• Mirror, inside rearview manual day/night
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt

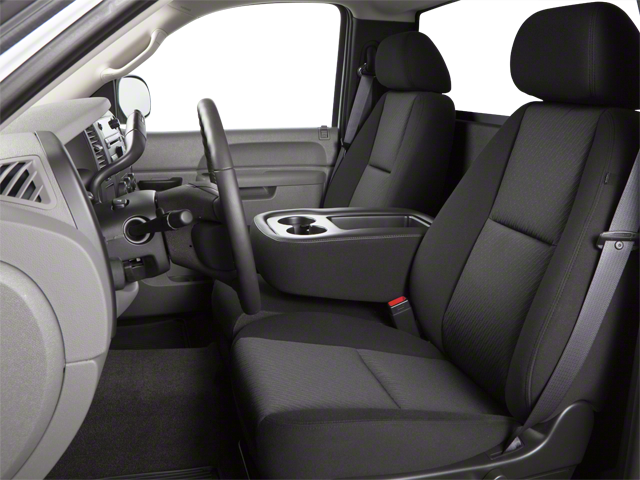

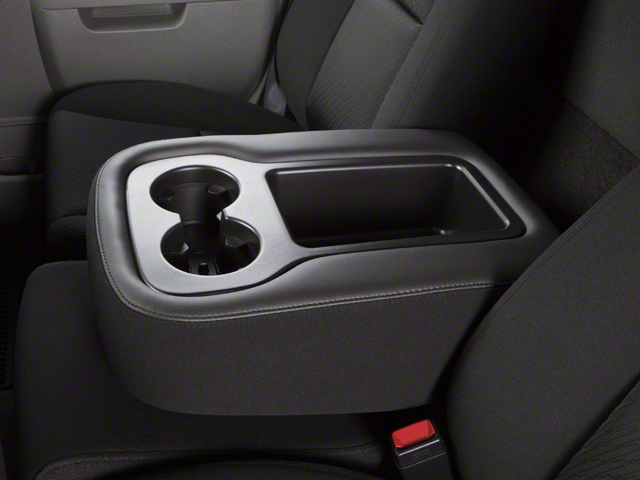

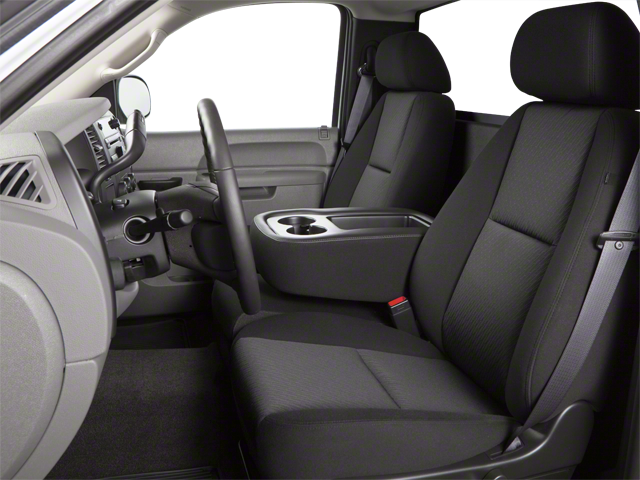

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• SiriusXM Satellite Radio, delete
• Steering wheel, includes theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Steering, power, rack-and-pinion

• Daytime Running Lamps, with automatic exterior lamp control
• OnStar, delete
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitor System (does not apply to spare tire)

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

LABEL, FASTEN SAFETY BELTS

• "Fasten Safety Belts" reminder label on left and right hand front door window glass

LICENSE PLATE BRACKET, FRONT

• (will be forced on orders with ship-to states that require a front license plate)

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 46 mm piston monotube shocks and 36mm front stabilizer bar

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

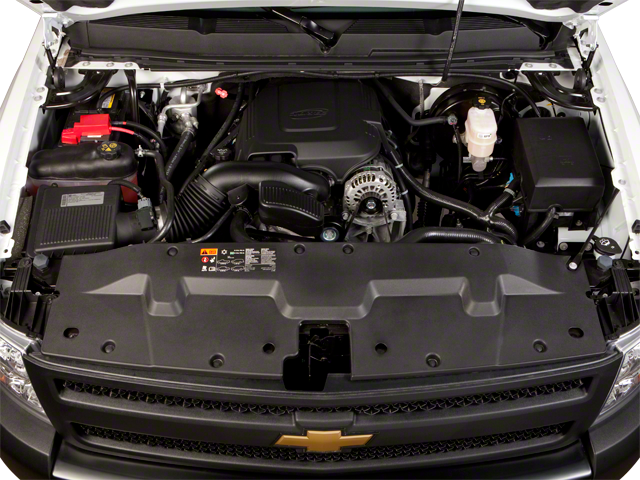

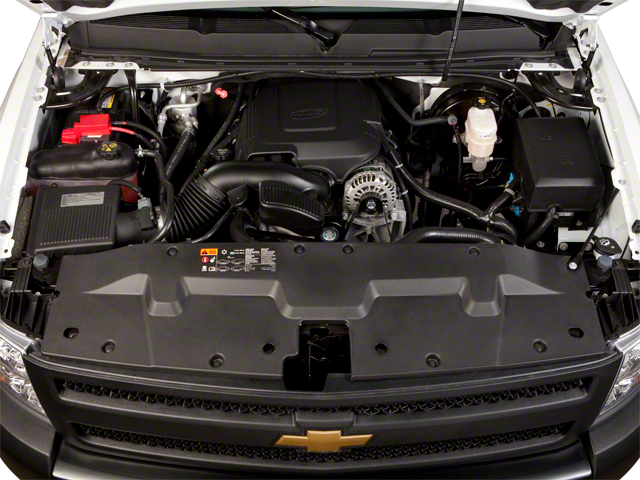

ENGINE, VORTEC 4.8L VARIABLE VALVE TIMING V8 SFI FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (302 hp [225.2 kW] @ 5600 rpm
• 305 lb-ft torque [411.8 N-m] @ 4600 rpm)
• iron block

WHEELS, 4 - 17" X 7.5" (43.2 CM X 19.1 CM) STEEL, 6-LUG PAINTED

• includes painted center caps (spare wheel will not cosmetically match the other 4 wheels) (STD)

TIRES, P265/70R17 ALL-SEASON, BLACKWALL

• includes a blackwall spare tire (STD)

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan and digital clock (STD)

• REAR AXLE 3.42 RATIO
• TRAILERING PACKAGE HEAVY-DUTY includes trailering hitch platform and 2-inch receiver 7- wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (KNP) external transmission oil cooler (with (MYC) 6-speed automatic transmission also includes (K5L) heavy-duty cooling package and (KC4) external engine oil cooler) Includes (Z85) Handling/Trailering Suspension Package. Also includes (G80) heavy-duty automatic locking rear differential on Retail orders only.)
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• LABEL FASTEN SAFETY BELTS "Fasten Safety Belts" reminder label on left and right hand front door window glass
• LICENSE PLATE BRACKET FRONT (will be forced on orders with ship-to states that require a front license plate)
• ENGINE BLOCK HEATER
• COOLING AUXILIARY EXTERNAL TRANSMISSION OIL COOLER HEAVY-DUTY AIR-TO-OIL
• GVWR 6800 LBS. (3084 KG)
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 46 mm piston monotube shocks and 36mm front stabilizer bar
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment

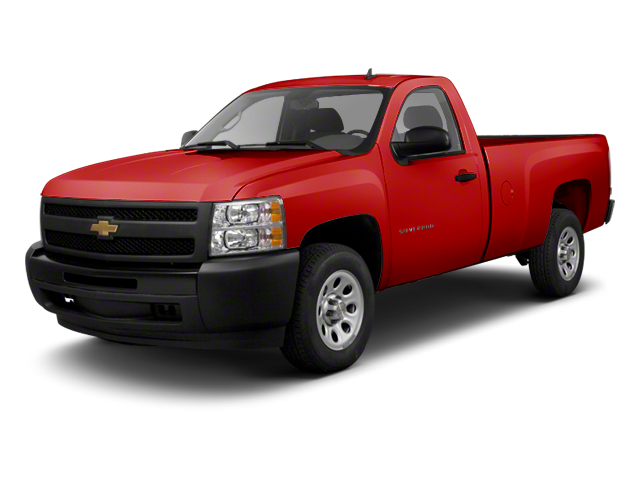

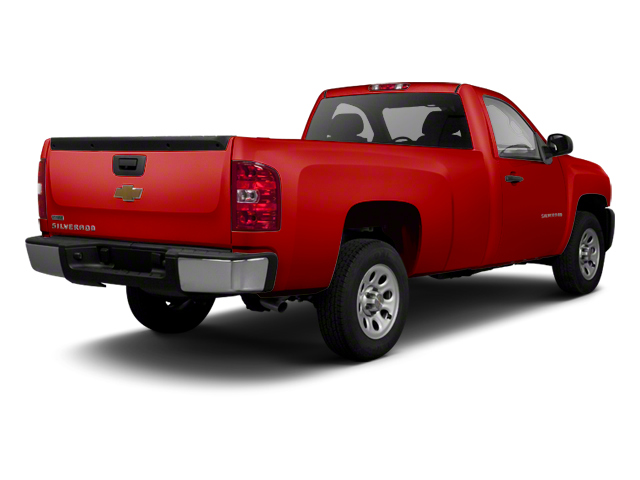

• VICTORY RED
• DARK TITANIUM VINYL SEAT TRIM
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• PAINT SOLID
• ENGINE VORTEC 4.8L VARIABLE VALVE TIMING V8 SFI FLEXFUEL capable of running on unleaded or up to 85% ethanol (302 hp [225.2 kW] @ 5600 rpm 305 lb-ft torque [411.8 N-m] @ 4600 rpm) iron block
• WHEELS 4 - 17" X 7.5" (43.2 CM X 19.1 CM) STEEL 6-LUG PAINTED includes painted center caps (spare wheel will not cosmetically match the other 4 wheels) (STD)
• LPO BED LINER
• TIRES P265/70R17 ALL-SEASON BLACKWALL includes a blackwall spare tire (STD)
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan and digital clock (STD)
• Four Wheel Drive
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Vinyl Seats
• Adjustable Steering Wheel
• Cruise Control
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Front Side Air Bag
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3750
• Curb Weight - Front (lbs): 2921
• Curb Weight - Rear (lbs): 1930
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Vehicle Weight Rating Cap (lbs): 6400
• Gross Combined Wt Rating (lbs): 11000
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4900
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 490
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5800
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 870
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 735
• Maximum Trailering Capacity (lbs): 9800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3750
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3750
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Tires
• Front Tire Order Code: QVL
• Rear Tire Order Code: QVL
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2304
• Rear Tire Capacity (lbs): 2304
• Rear Tire Capacity (lbs): 2304
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.73
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 44.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: Driver Side
• Exterior Dimensions
• Wheelbase (in): 133.00
• Length, Overall w/o rear bumper (in): 224.50
• Width, Max w/o mirrors (in): 79.90
• Height, Overall (in): 73.80
• Overhang, Front (in): 39.40
• Overhang, Rear w/o bumper (in): 52.10
• Front Bumper to Back of Cab (in): 116.50
• Cab to Axle (in): 55.90
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.90
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.50
• Ground Clearance, Rear (in): 13.10
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): 61.50
• Cargo Box Width @ Floor (in): 62.40
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.50
• Cargo Volume (ft³): 75.50
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.50
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 62.50
• Summary

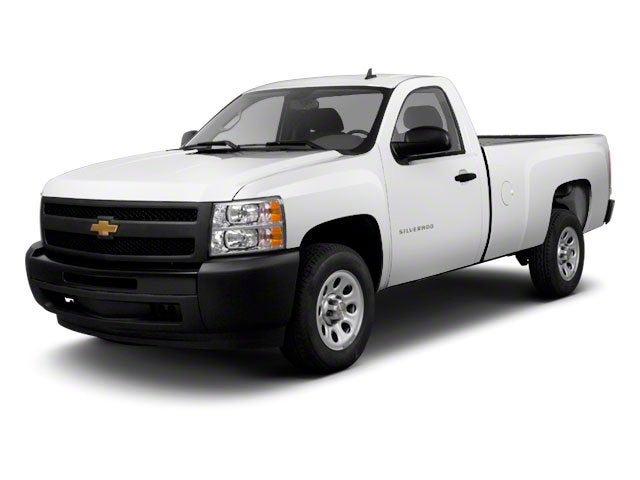

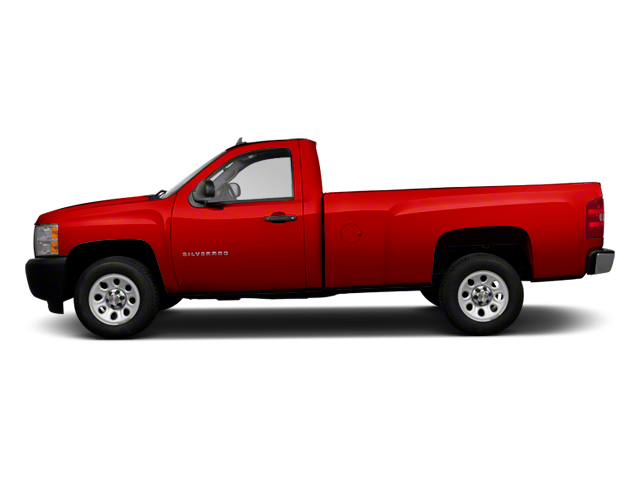

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Reg Cab 8' Wideside
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.2
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.2
